Stencil printer S50

Lorem ipsum dolor sit amet consectetur adipisicing elit. Commodi, iusto?! Lorem ipsum dolor sit amet consectetur adipisicing elit. Commodi, iusto?!

Advanced SMT Placement Technology

The Stencil Printer S50 is a reliable manual stencil printer designed for small to medium-volume SMT production. It features a frame size of up to 584 × 584 mm and supports PCB sizes up to 440 × 440 mm, suitable for a wide range of board sizes.

The printer uses manual squeegee drive with linear guides and a manual reversible dual squeegee system compatible with metal or rubber blades, with adjustable inclination (0–60°) and contact pressure (0–200 N) for consistent paste application.

It offers precise table adjustments with ±12 mm X/Y movement, ±2.7° Theta rotation, and an off-contact range of 0–24 mm, ensuring accurate printing for fine-pitch components down to 0.4 mm. Automatic table lowering with adjustable speed and pressure adds to the ease of use.

Key Features

  • Max stencil frame size: 584 × 584 mm (compatible with 4-fold rapid tensioning frames)
  • Manual reversible dual squeegee with universal holders for metal or rubber blades
  • Manual squeegee drive with linear guides
  • Supports single and double-sided printing of glue, solder paste, and other substances
  • X/Y adjustment: ±12 mm, Theta rotation: ±2.7°, Table adjustment accuracy: ±0.01 mm
  • Automatic table lowering with adjustable speed and contact pressure

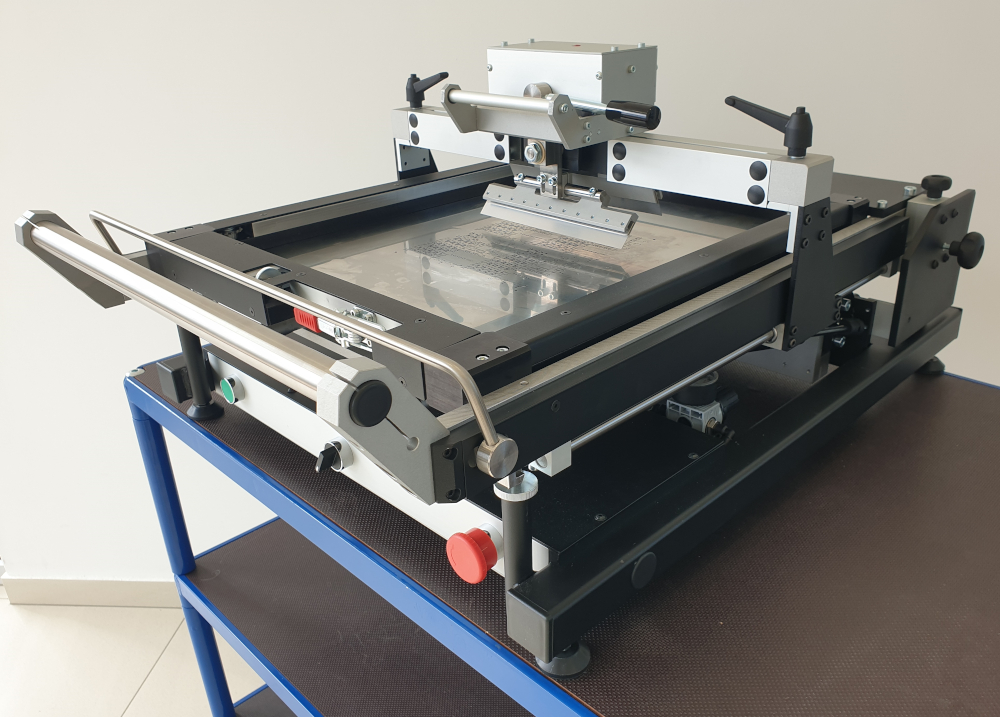

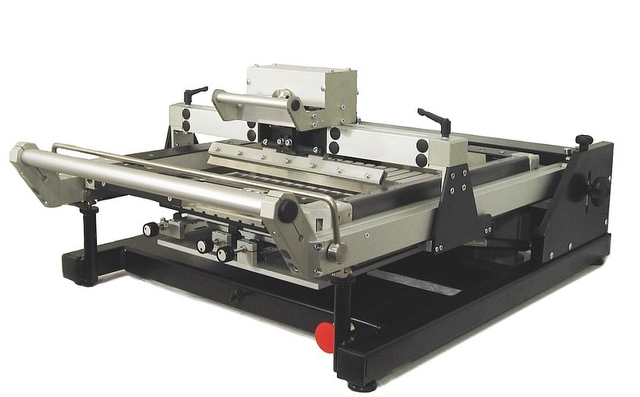

S50 thumbnail

Reliable Manual SMT Printing with Precise Control

The S50 stencil printer offers a dependable solution for small to medium-volume SMT production. Featuring a manual squeegee drive with linear guides and a manual reversible dual squeegee system, it ensures consistent paste application with adjustable blade inclination and pressure. Precise table adjustments and automatic table lowering enhance accuracy and ease of use, making the S50 ideal for fine-pitch components in various production environments.
