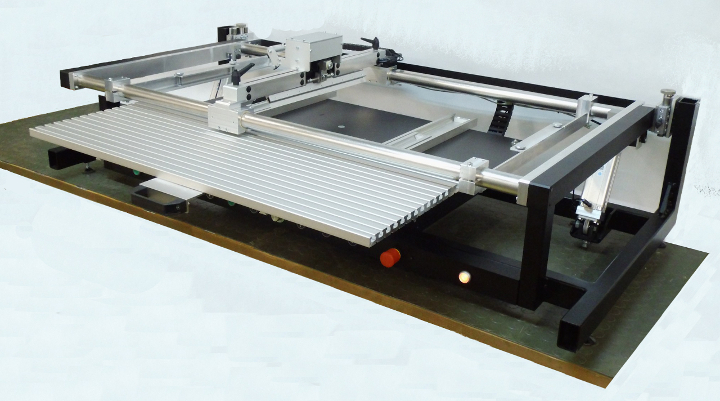

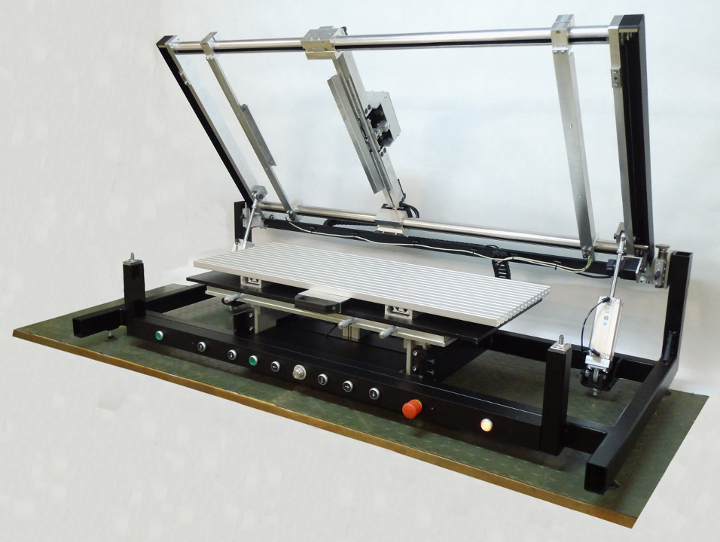

Stencil printer SXXL

High-Capacity Precision SMT Printing for Large PCBs

The SXXL stencil printer is designed for large and complex SMT production tasks. It features a variable frame system supporting up to 1800 × 800 mm and PCBs up to 1600 × 650 mm, making it ideal for oversized boards. The integrated vision system with dual cameras and an LCD monitor ensures accurate alignment every time.

The automatic reversible dual squeegee offers adjustable inclination and pressure for consistent paste application. With programmable electric squeegee control and automatic table lowering, the SXXL delivers precise printing with excellent repeatability and ease of use.

Key Features

• Variable frame size up to 1800 × 800 mm for large boards
• Supports PCBs up to 1600 × 650 mm
• Integrated vision system with 2 cameras and LCD monitor
• Automatic reversible dual squeegee with adjustable inclination and pressure
• Programmable electric squeegee drive with speeds from 5 to 150 mm/s
• Automatic table lowering with adjustable speed and contact pressure
